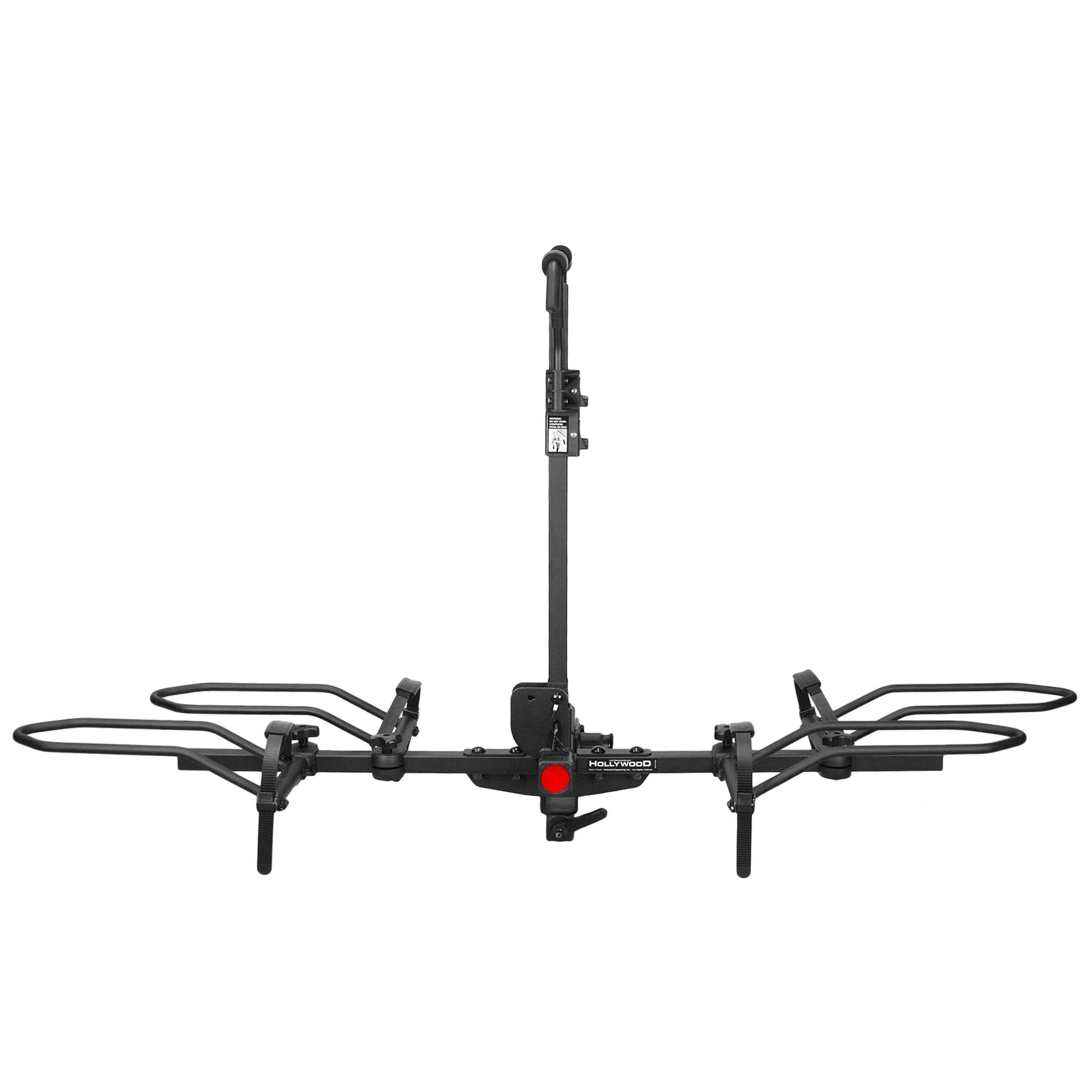

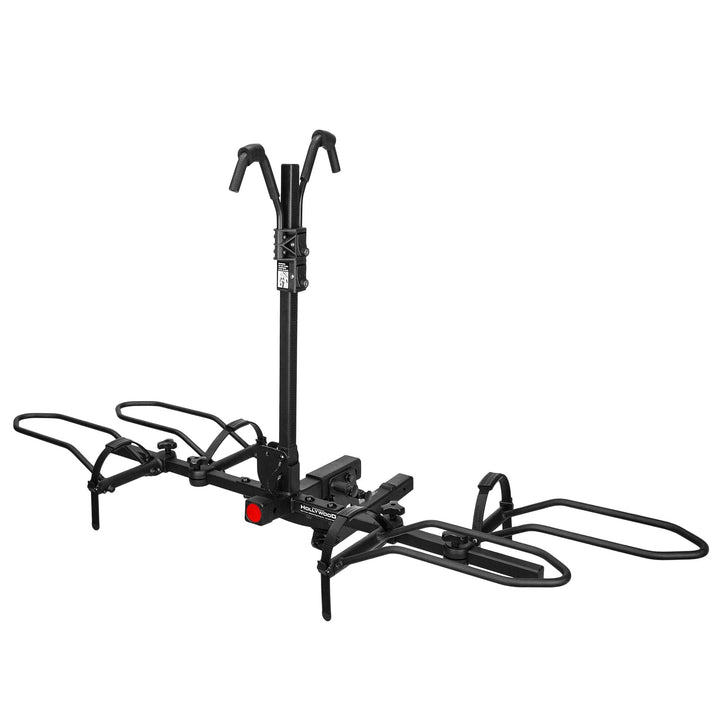

Hollywood Sport Rider E-Bike Rack

Specifications

• Capacity: Two Bikes (Max. 80 lbs per bike)
• Hitch Size: 2” only (Do not use a 1 ¼” -2” hitch adapter)
• Maximum bike wheelbase: 60”
• Minimum wheelbase: 36"
• Maximum tire width: 5”

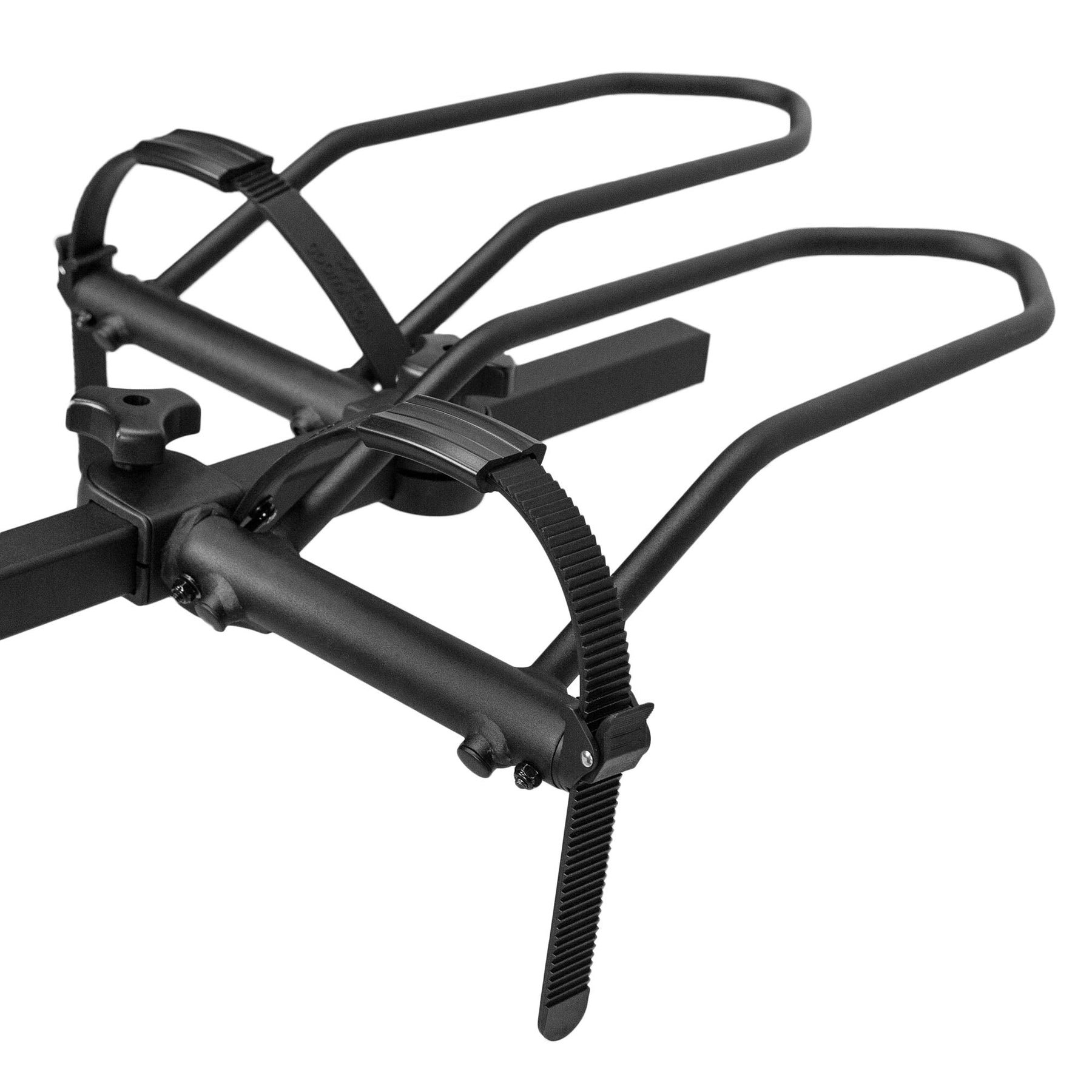

• Features extra heavy duty wheel holders (Now with ratchet straps and rim protectors), an internally reinforced frame, and an external brace for heavy load carrying capacity
• Includes keyed-alike locking hitch pin, 8’ security cable, and locking frame hooks
• Patented “No-Wobble Hitch System" eliminates slack between the receiver and the rack without the use of tools

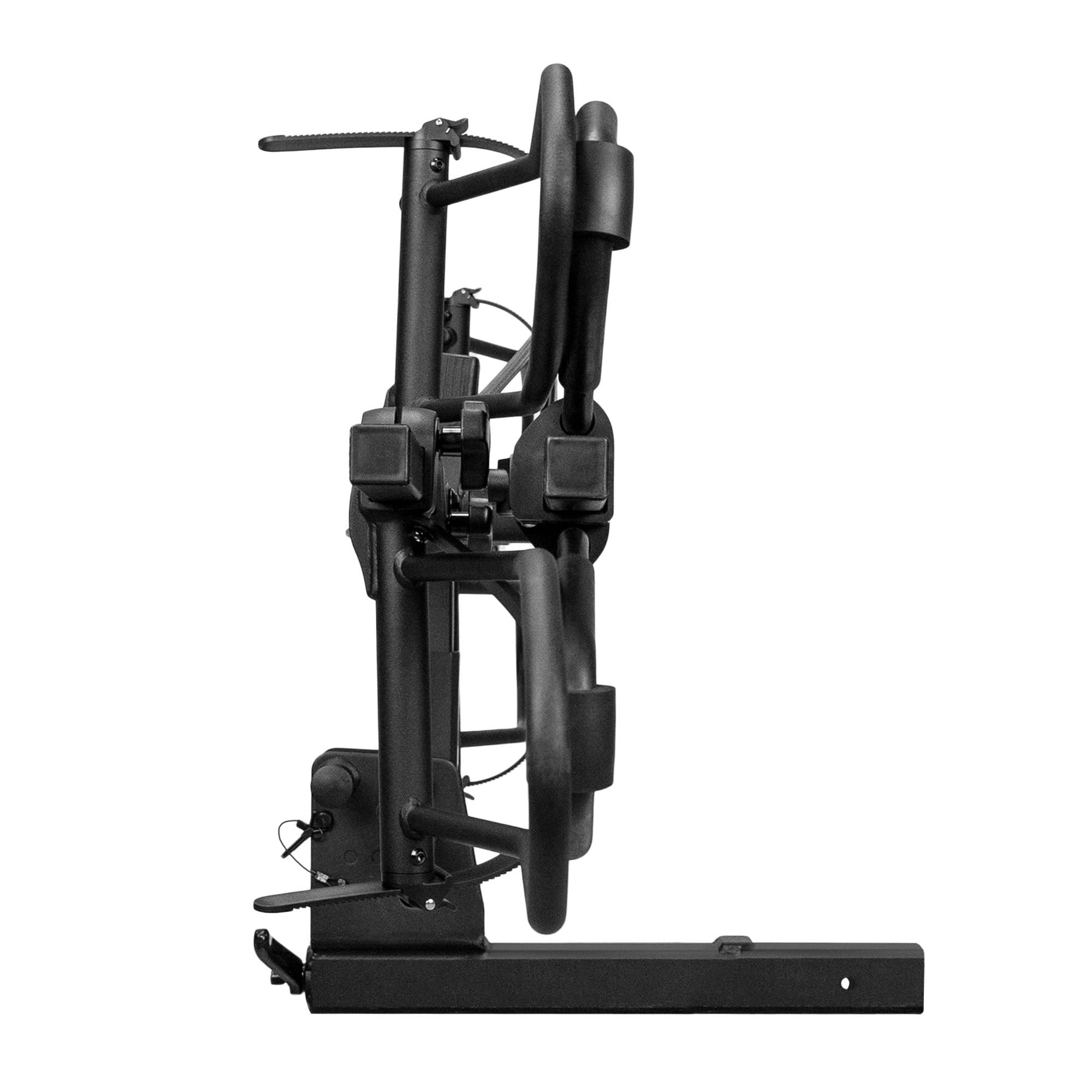

• Folds flat against car when not in use
• Tilts down for easy cargo door access
• Space between bikes: 10

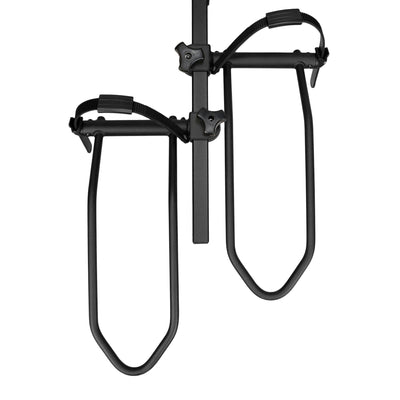

• Now includes two Small Wheel Adapter (SW-ADP-U) for 20" Fat tire bikes rear wheels to prevent derailleur hanger interference (You will only need one per bike)
• For step-through bicycles you will need to also purchase a Bike Adapter
• Now includes a red safety strap to help secure the bikes to the central post and to each other
• Rack Weight: 58 lbs.
• Limited Lifetime Warranty
• Not to be used on front hitches
• Not to be used with a bike cover
• Not to be used with any 1-1/4" - 2" Adapter
• Not to be used with any Hitch Extension longer than 8"
• Not to be used on any trailer, fifth wheel or towed vehicle

Installation

Installation Video 2020- 2023 (HR1500)

No-Wobble Hitch System Video

Installation Video 2019 - 2020 (HR1450Z-E / HR1455Z-E)

Installation Instructions 2019 - 2023

Replacement Parts

2021 -2023 Edition Replacement Parts: HR1500

2019 - 2020 Replacement Parts: HR1455Z-E

2016 - 2018 Replacement Parts: HR1455Y-E

2019 - 2020 Replacement Parts: HR1450Z-E

2016 - 2018 Replacement Parts: HR1450Y-E
