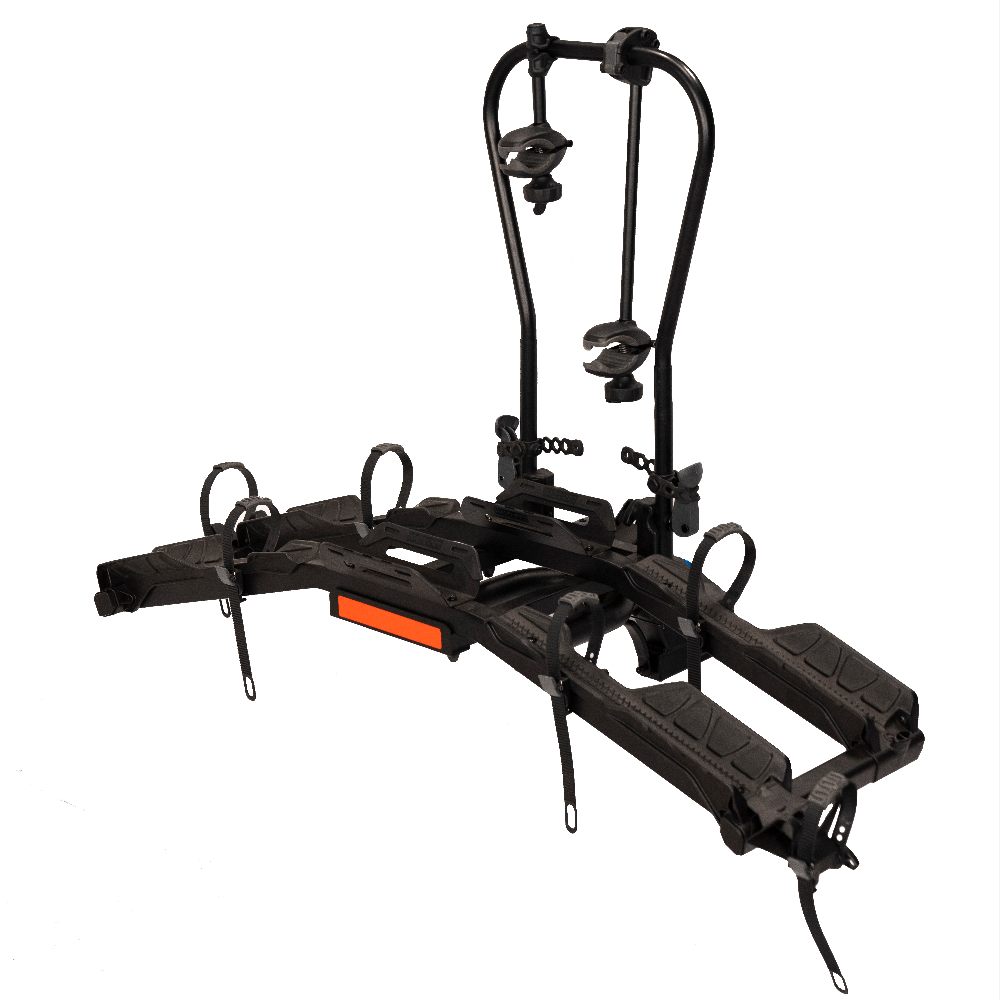

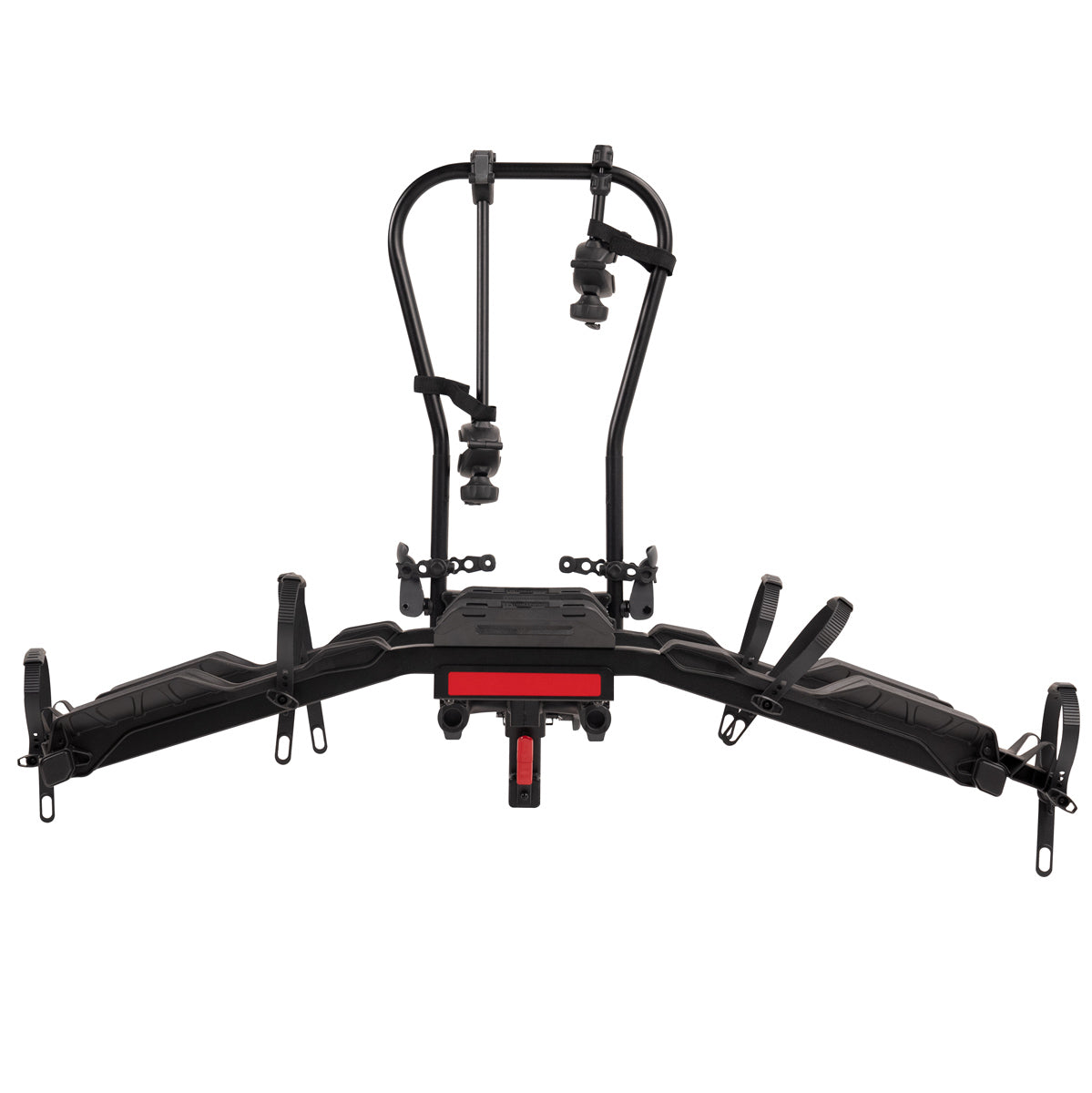

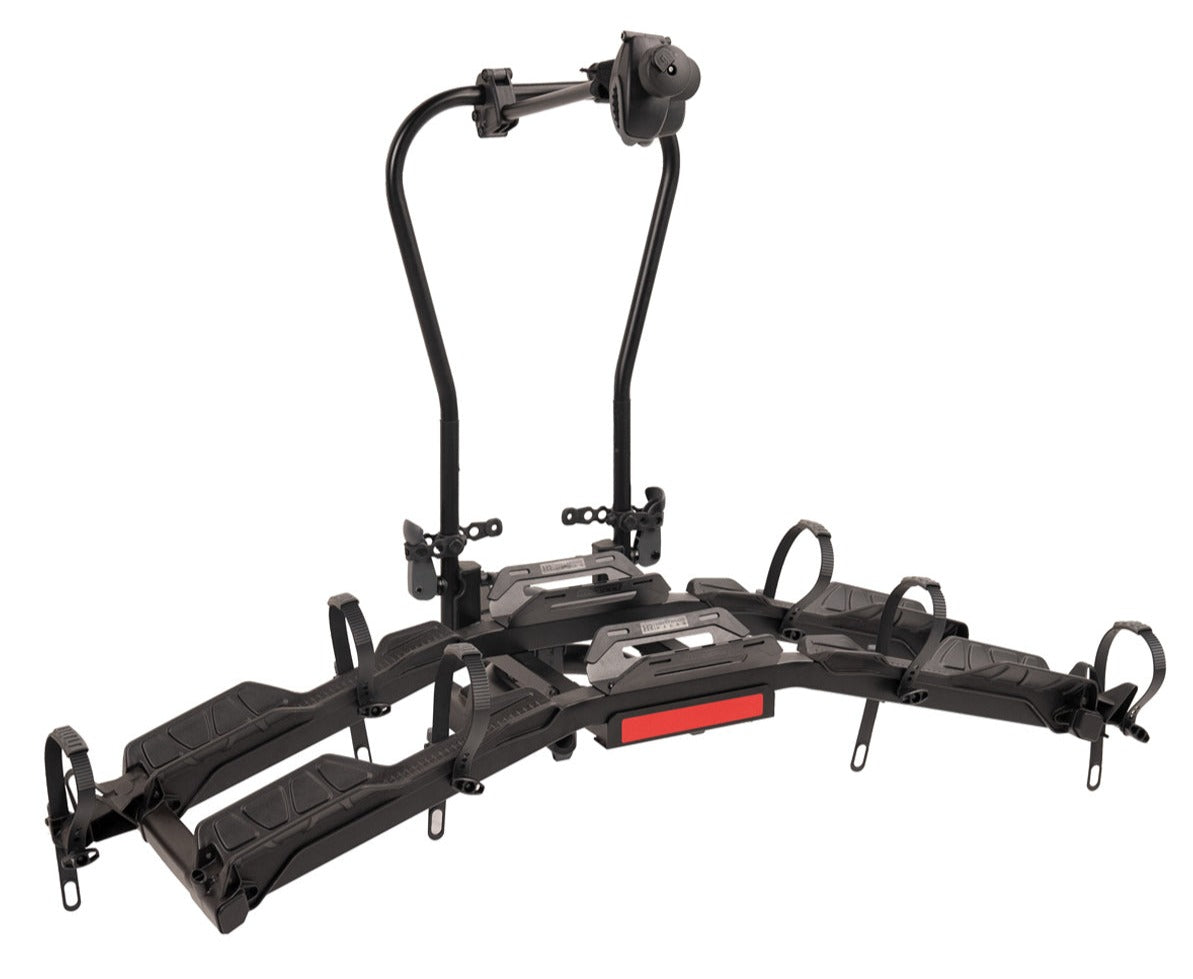

Hollywood (Destination E) E-Bike Rack

Specifications

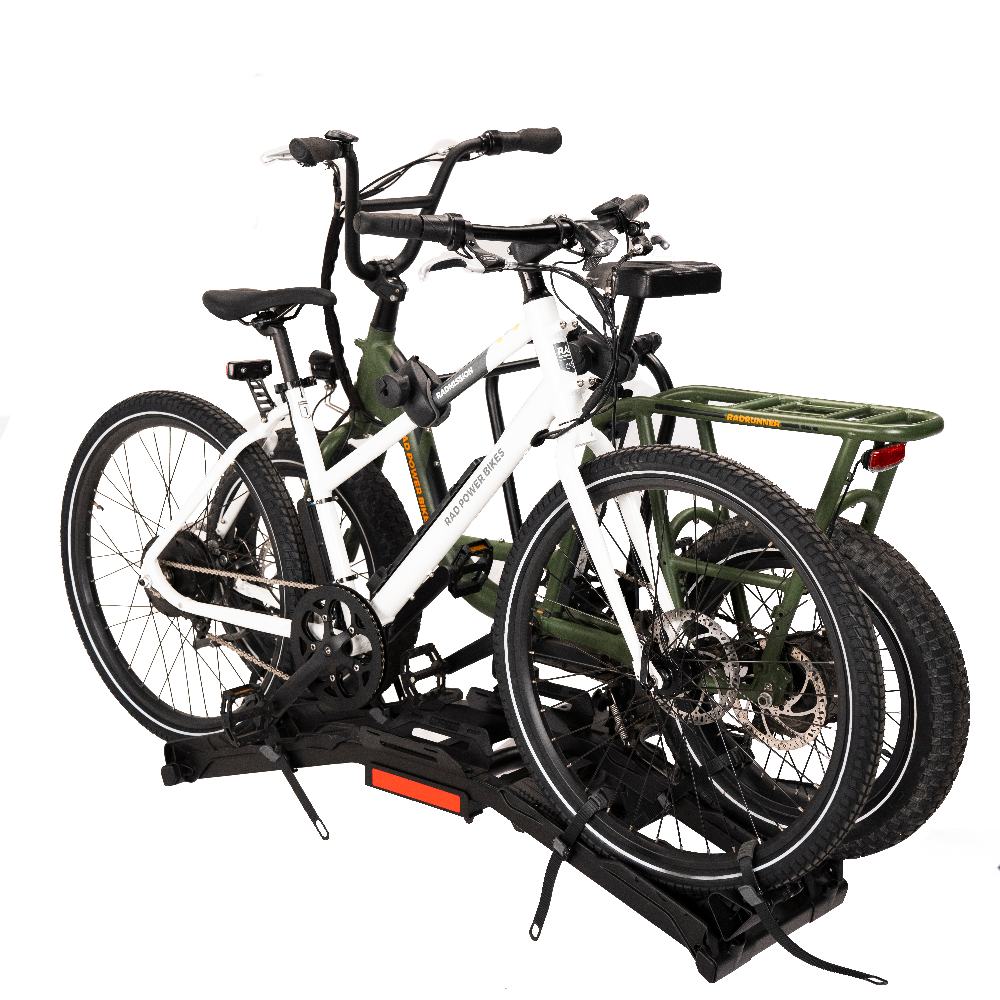

• Capacity: Two Bikes (Max. 70 lbs. per bike)
• Hitch Size: 2” only (Do not use a 1 ¼” - 2” hitch adapter)
• Includes a 46" long ramp
• Maximum bike wheelbase: 50”

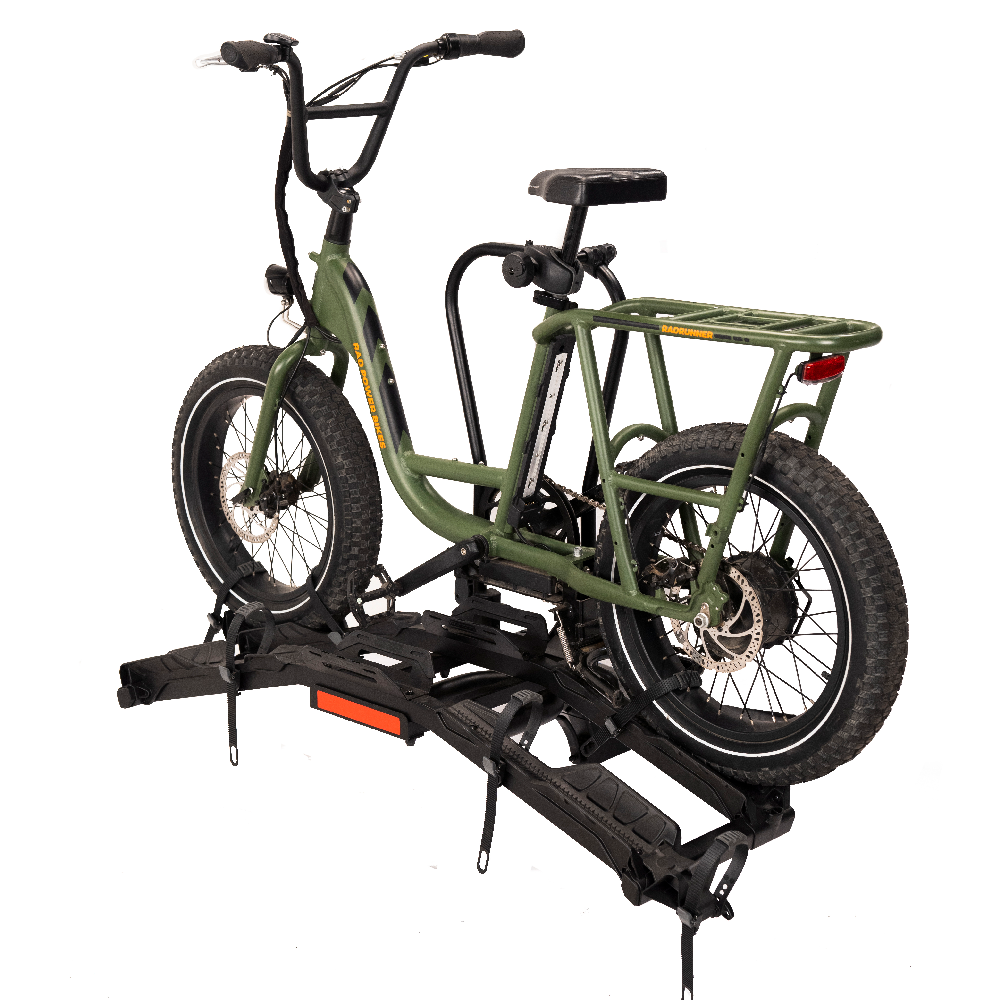

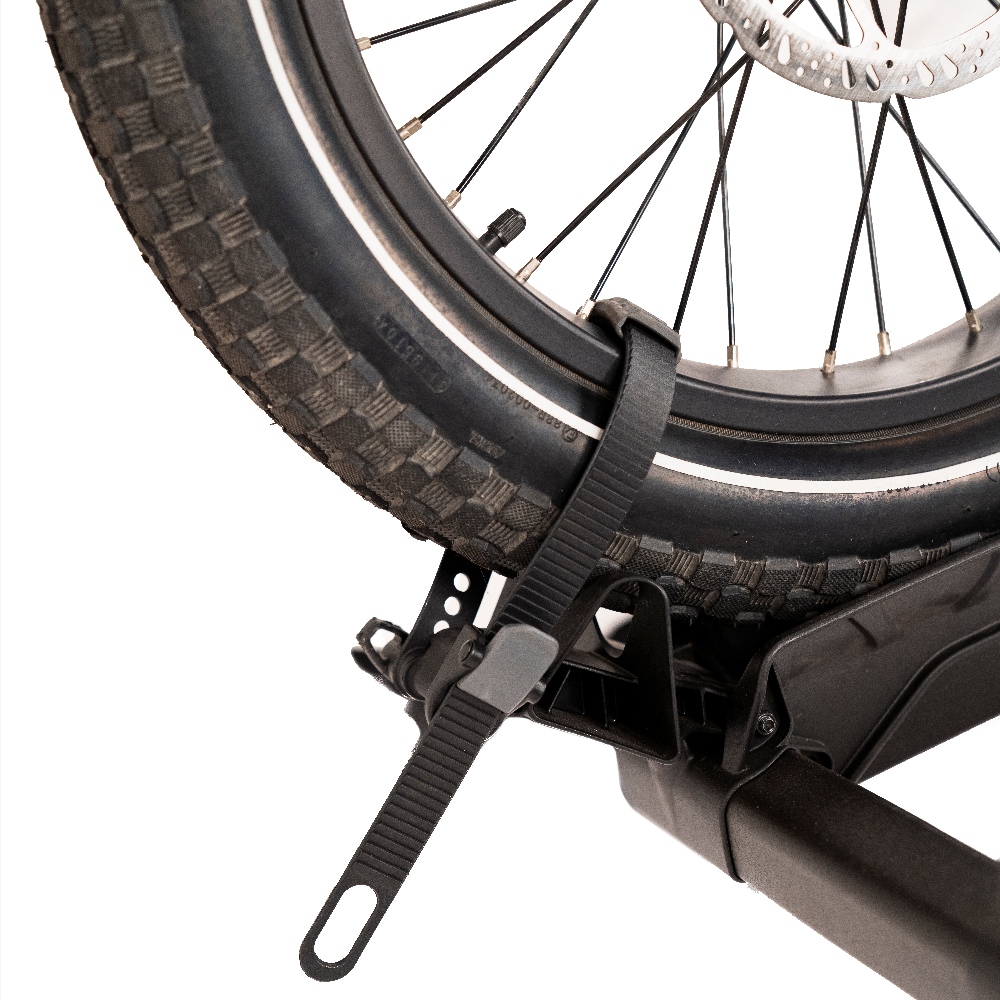

• Maximum tire width: 4.5”

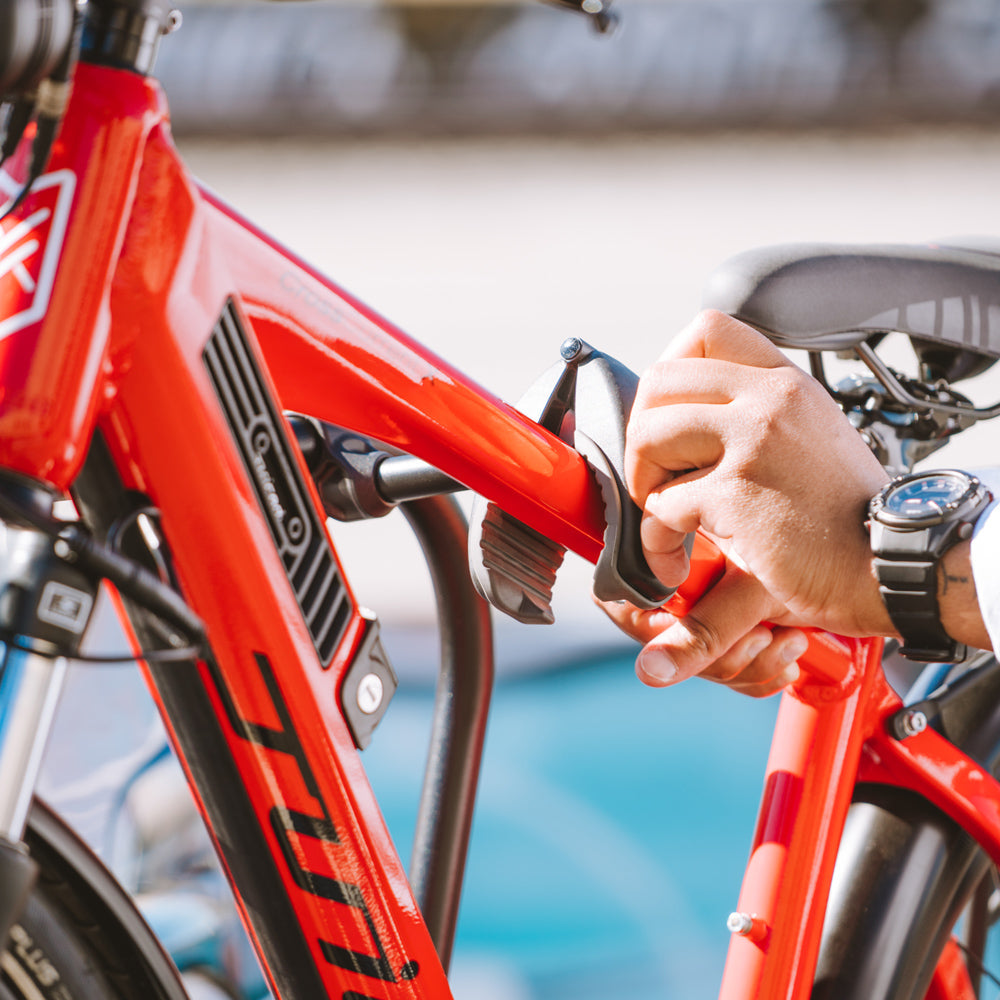

• Includes keyed-alike locking hitch pin and locking frame clamps
• “No-Wobble Hitch System" eliminates slack between the receiver and the rack without the use of tools

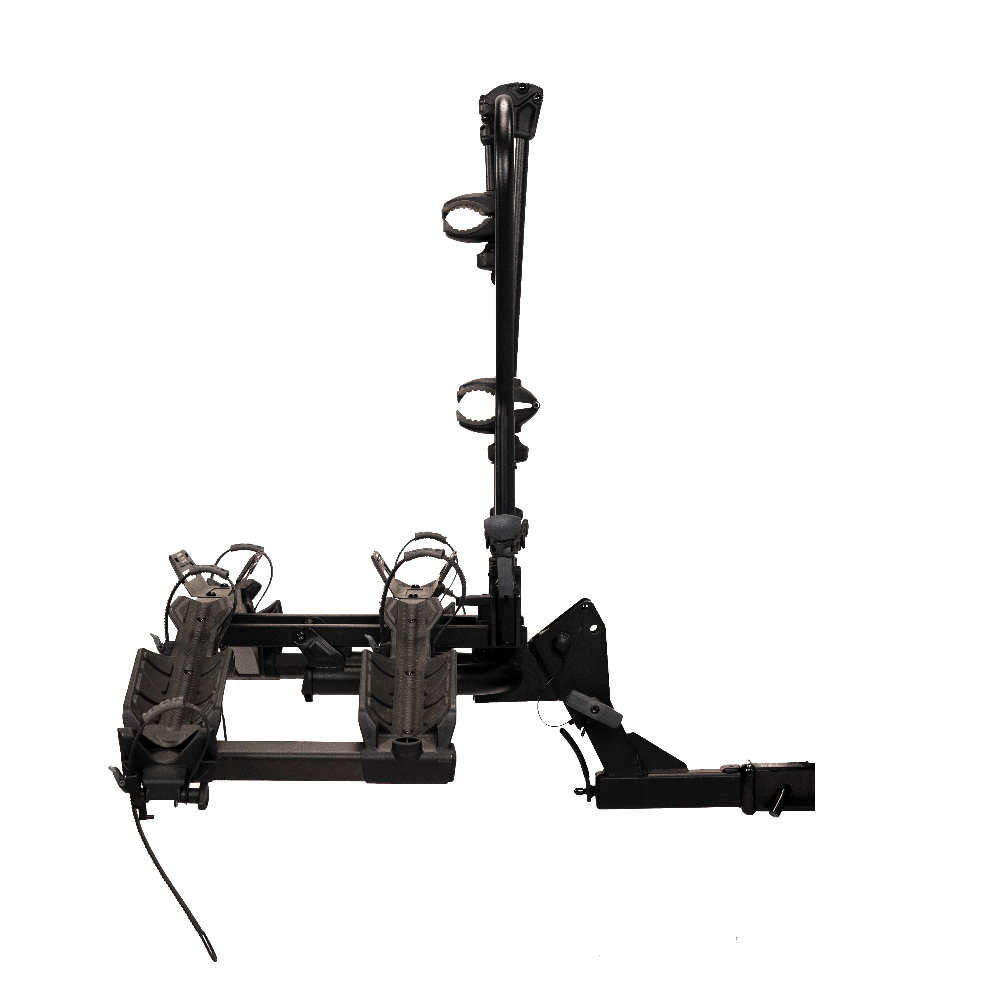

• Folds flat against car when not in use

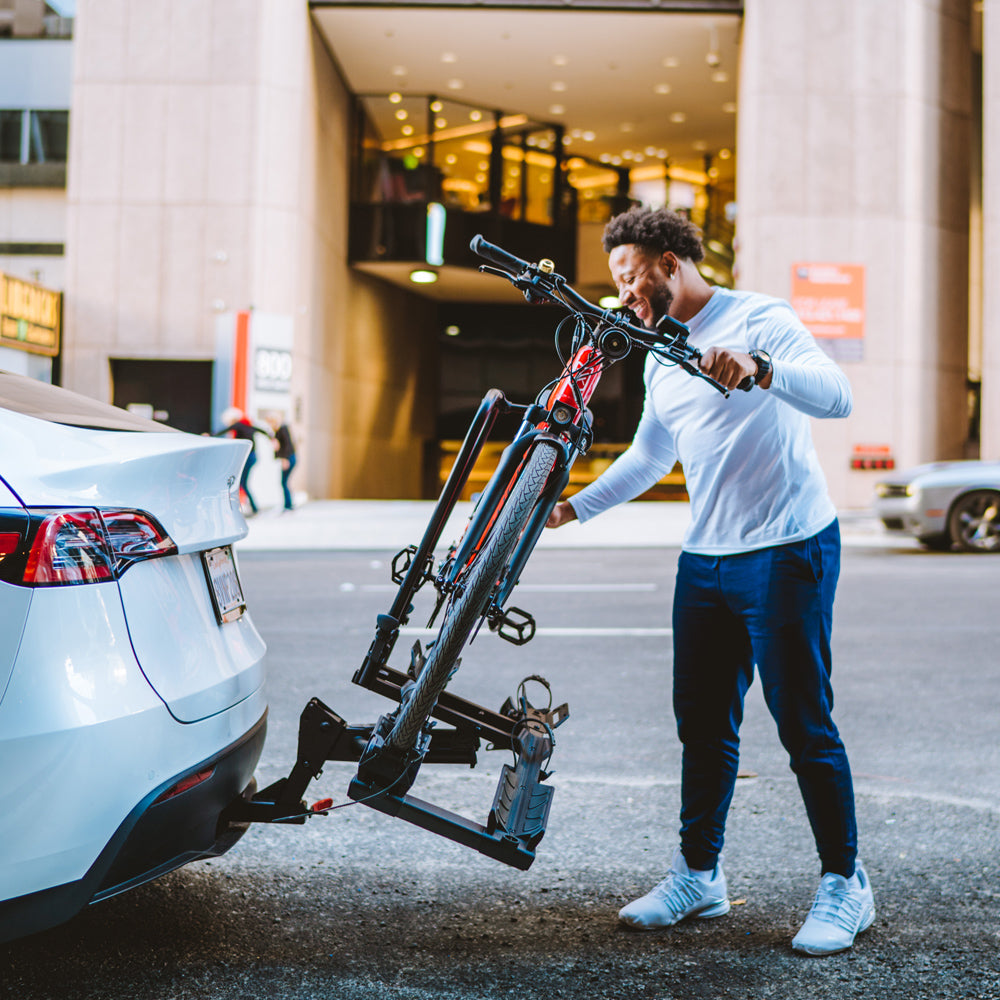

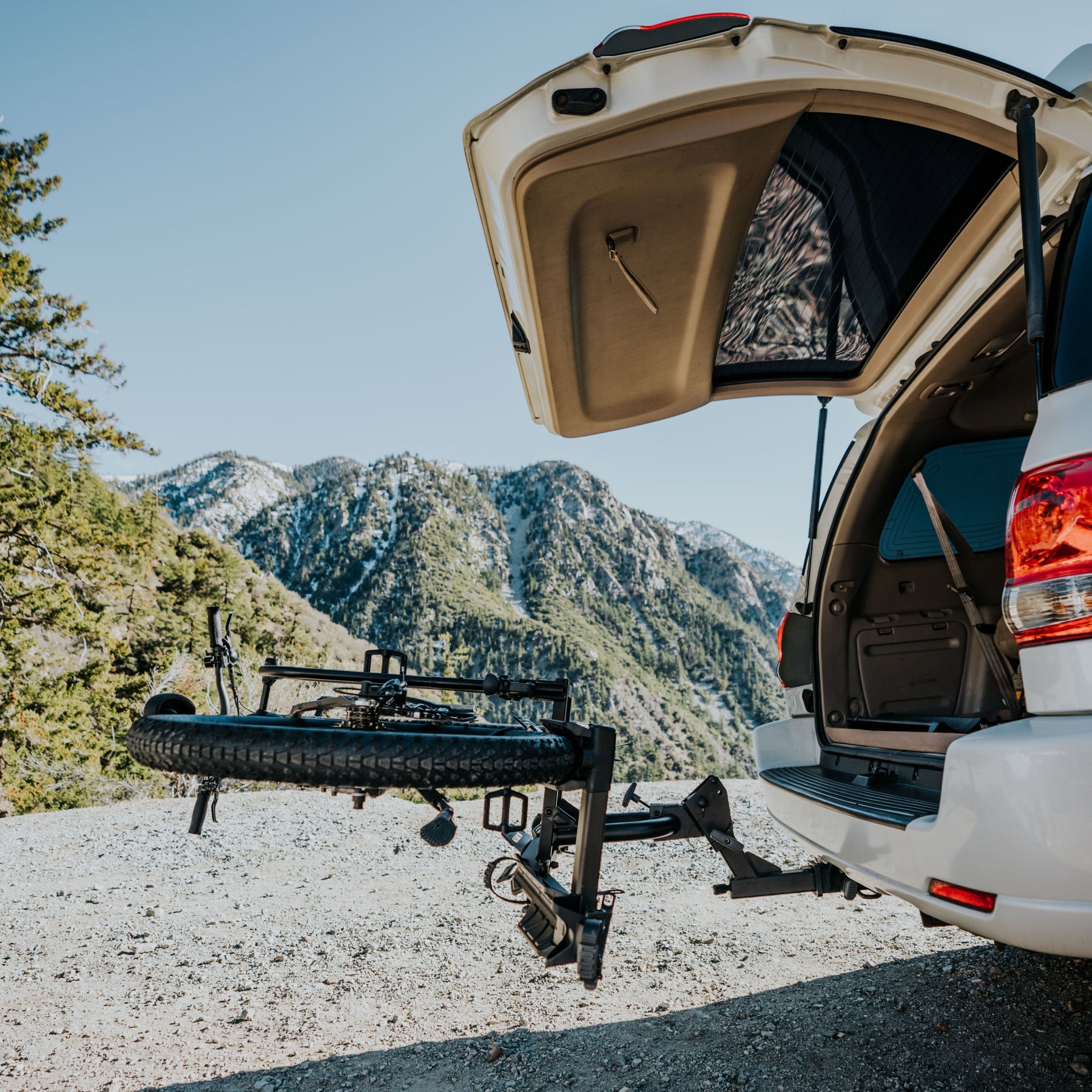

• Feature's "Balanced Tilting" with the pivot point between the 2 bikes, making tilting down for cargo door access as easy as it gets

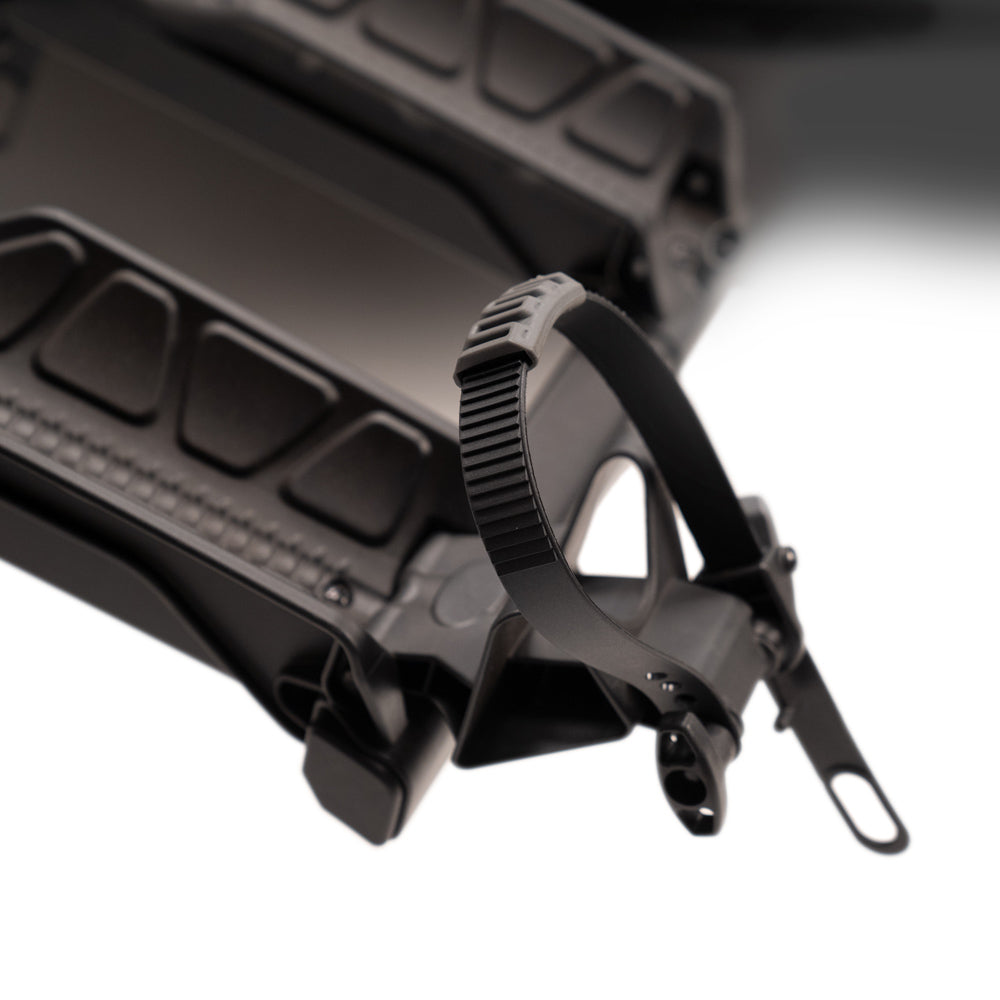

• The frame grabbers on this rack can hold step through bikes by the seatpost, therefore Bike Adapters are not needed and should not be used
• Includes optional fixed Frame Grabber to use in place of quick release option
• Space between bikes: 11"

• Rack Weight: 46 lbs.
• Limited Lifetime Warranty
• Fits round or oval tubing or seat posts between 1" and 2" in diameter

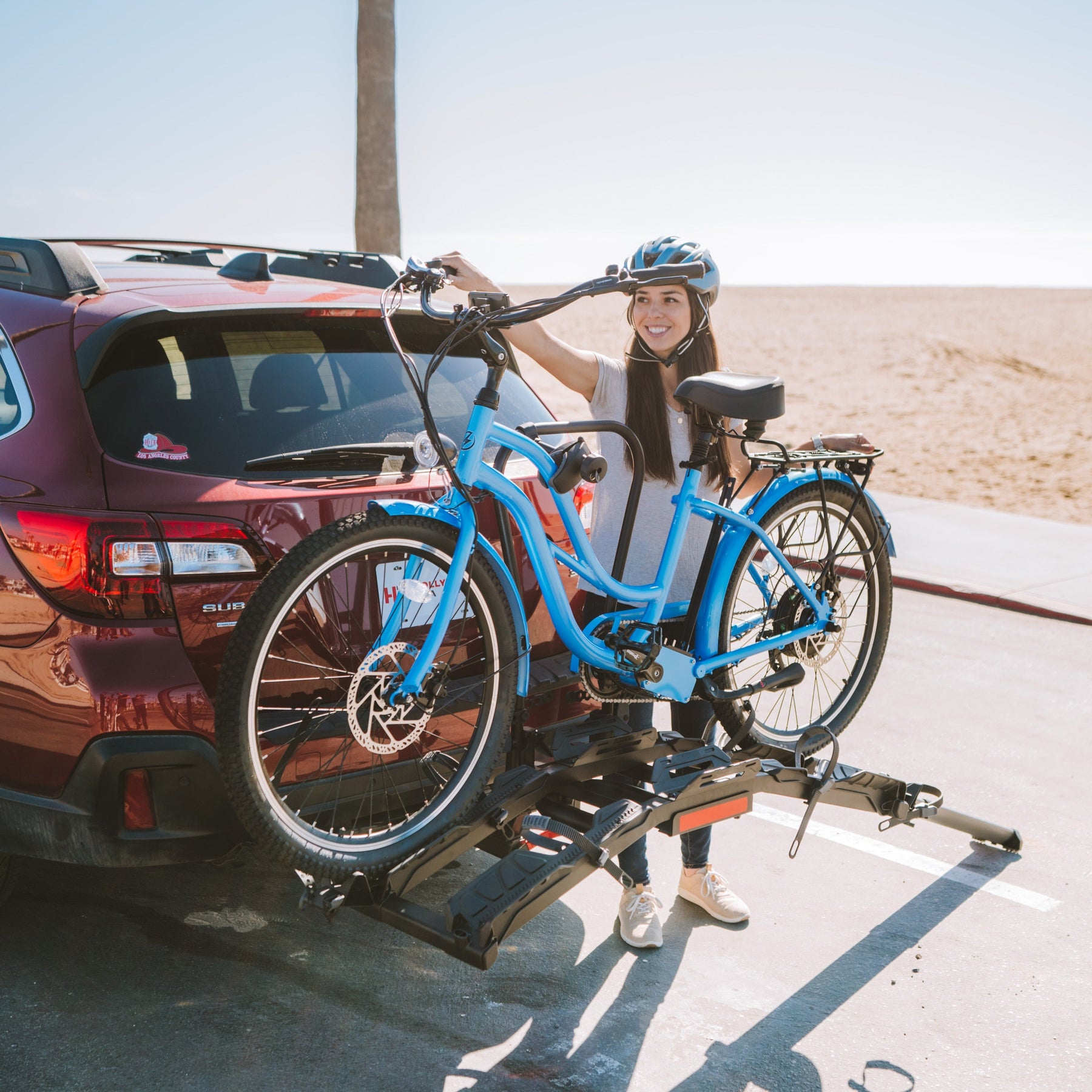

• For step through bikes: Secure the bicycle by using the racks Frame Grabber around the bikes seat post
• 4" Strap Extension Kits sold separately: STPEXT
• Not to be used on front hitches
• Not to be used with a bike cover
• Not to be used with any 1-1/4" - 2" Adapter
• Not to be used with any Hitch Extension longer than 8"
• Not to be used on any trailer, fifth wheel or towed vehicle
• CLASS B RV APPROVED ONLY (NOT APPROVED FOR CLASS A OR CLASS C RV'S)

Installation

Installation Video

Bike Loading Video

No-Wobble Hitch System Video

Fixed Frame Grabber Installation Video

Installation Instructions

Replacement Parts

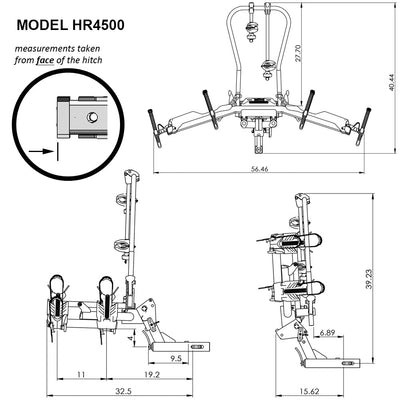

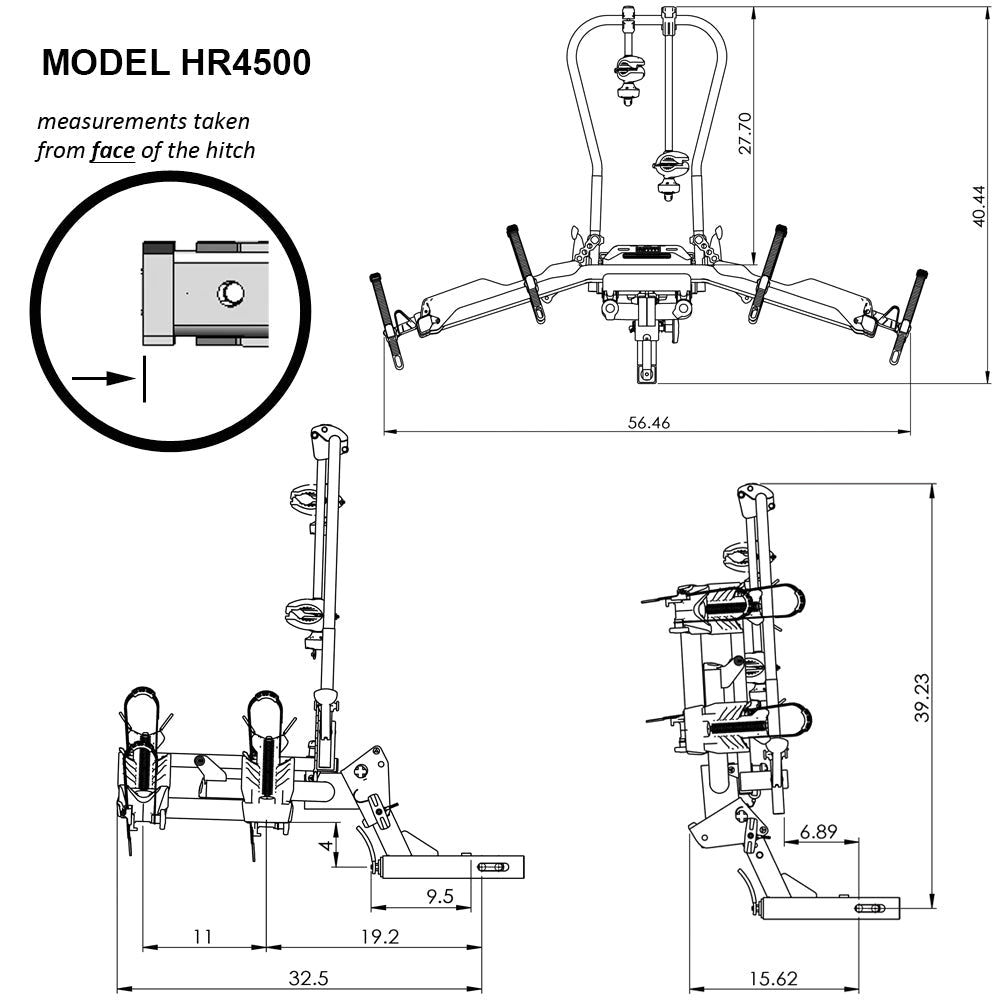

Replacement Parts: HR4500
